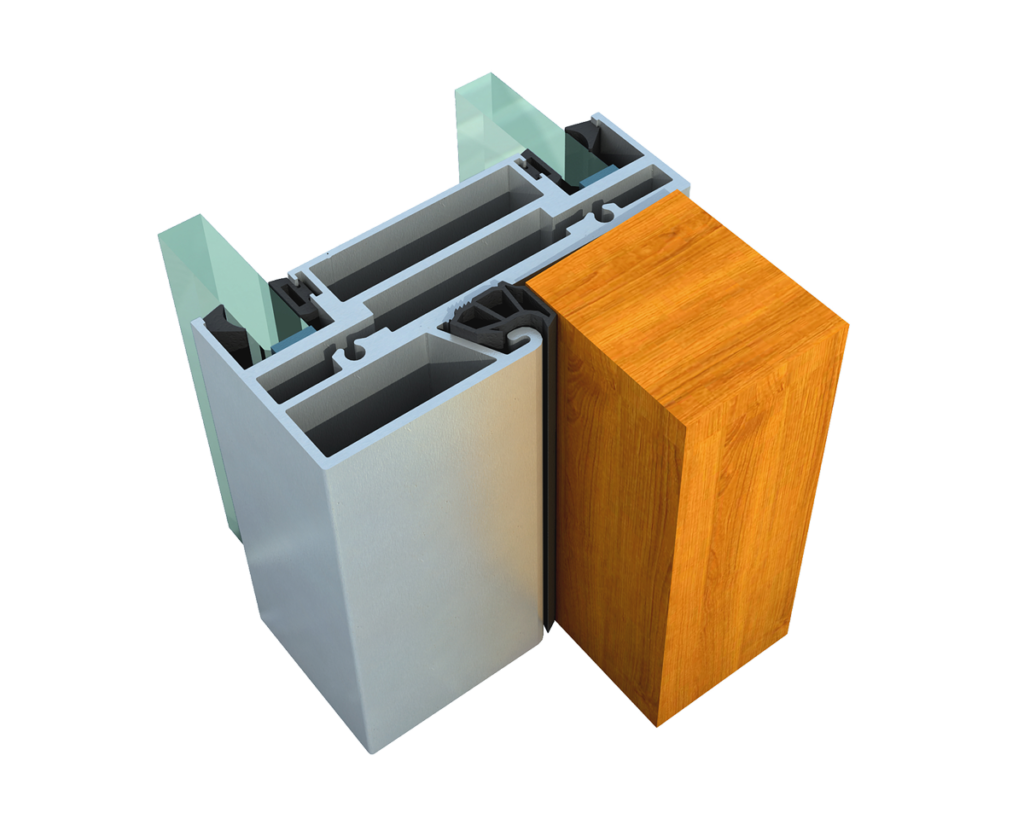

Multiply the Micra I profile, join it together and Micra II is born. Again the utmost transparency and even more privacy for quiet meetings. The further advantage of Micra II is thatdue to its width of 100mm, it can be perfectly combined with all other LIKO-S partition
systems. Door solutions to match, as well as profiles in hitec-looking anodised aluminium or sophisticated colour schemes. This system uses vertical connections by means of transparent tape.

For usage as non-loadbearing partitions.

Technical specifications

Sound insulation Rw

• Solid partition: 39-45 dB (depending on type of glass)
• Wooden door: 39 dB
• Alu-framed door: 37 dB
• Fully glazed door: 32 dB
• GLASSDESIGN door: 34 dB

Dimensions

• Profile thickness: 100 mm
• Glass thickness: 10, 12 mm
• Standard module width: 1 000 mm
• Standard module height: 3 000 mm
• Maximum partition height: 3 300 mm
• Standard clear door passage: 800 x 2 100 mm
• Doorframe: Aluminium

All tests executed according to European norms. All sound insulation values are always laboratory values.
